Jinka721PE – Sticker Cutting Plotter Machine

Watch the Jinka721PE in Action

Jinka721PE – Sticker Cutting Plotter Machine

The Jinka721PE Cutting Plotter is an ideal solution for precision cutting made affordable. Perfect for vinyl cutting, label and sticker production, signboard design, heat transfer cutting (T-shirt printing), and craft and prototype creation.

This machine is perfect for small businesses, design studios, and print shops looking for a reliable and cost-effective cutting solution. With its low-noise stepper motor and real-time adjustment capabilities, it delivers professional results at an entry-level price point.

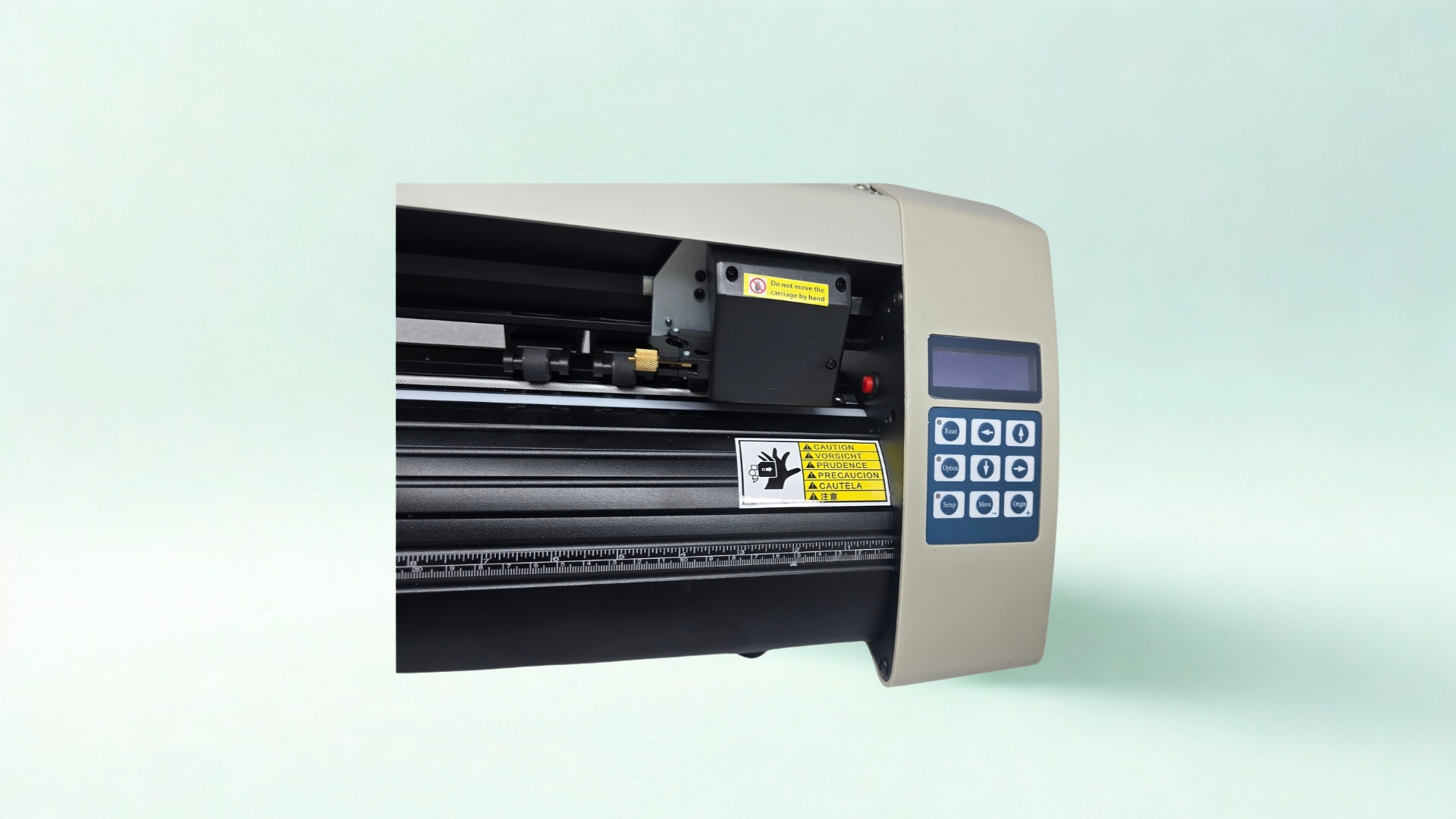

Key Features:

  • Low-noise stepper motor for smooth, quiet operation
  • Real-time adjustment of cutting speed and force
  • Long-lasting build with aluminum alloy structure
  • Optional optical eye for semi-automatic contour cutting
  • Great entry-level choice for entrepreneurs and creatives
  • 32-bit CPU with advanced memory capabilities
  • Multi-system compatibility (Windows XP/Vista/7/8/10)
Model
721PE
Main Board
32-bit CPU
Memory
1MB / 4MB cache
Max Paper Feed Width
720mm
Max Cutting Width
630mm
Max Cutting Speed
800mm/s
Max Cutting Thickness
1mm
Knife Pressure
10–500g (adjustable)
Mechanical Resolution
0.0254mm/step
Repeatability
0.127mm
Interface
COM + USB
Power Supply
AC85V–AC264V 50Hz
Operating Temperature
+5°C to +35°C
Humidity Range
30%–70%
Warranty
12 months
